Laser wood engraving – The Eight horse painting

Release Time:2016/05/13 sample club Browsing Times:1675

wood laser engraver

A Portrait of Eight Breed is an Ink wash painting painted by the famous Chinese painter, Ju Peon. The eight breed are owned by the ancient King Mu of Western Zhou Dynasty who is a legendary King.Thunder laser will engrave this famous painting by using our laser cutter model Mars 130 with 100watt laser power.

laser cutter file:Download

Required items:

9mm plywood

2″ laser head

Thunder laser used:

Model: Mars 130

Laser Tube: 100 watt

Setting:

Layer: Blue

Processing Mode: Scan

Speed: 500mm/s

Max power: 30%

Min power: 30%

Interval: 0.08

Layer: Black

Processing Mode: cut

Speed: 5mm/s

Max power: 75%

Min power: 75%

The settings are only for reference, users need to find the best setting by testing.

wood laser engraver

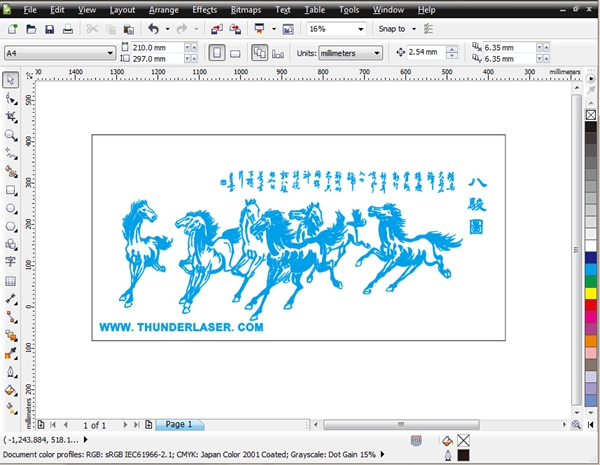

After we design the file in CorelDraw, we send the file to laser software directly by clicking the laser plug-in. Then we input the best setting parameters and “Download” the file to the laser cutter.

wood laser engraver

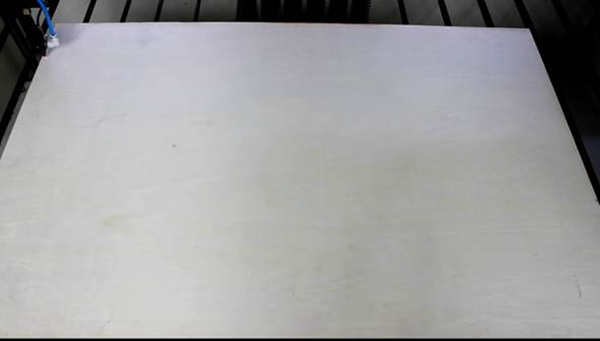

Put the wood sheet on work table of the laser cutter and move the laser head to the suitable positionthen adjust the focal distance, press “Origin” button to confirm the starting point, then press “Start” to run the job.

wood laser engraver

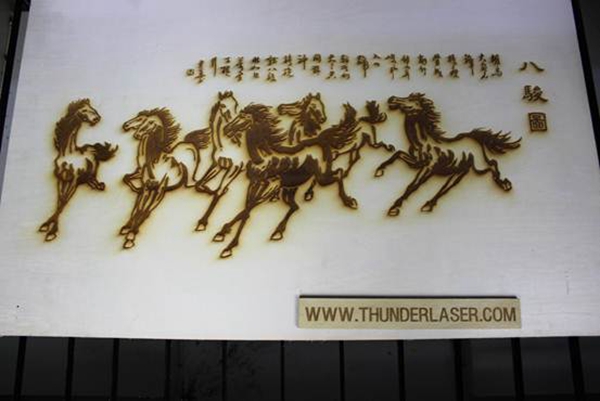

When the job is done, take out the painting and put it in a frame. Decorate it in your living room, it looks very nice!

Tips:

1.The power/speed settings will be different depend on different material and different machine configuration, to get the best setting parameters, users need to test several times. You can download a parameter list from our site is for reference.

https://www.thunderlaserthai.com/laser-download

2.It’s suggested to use less air assist during laser engraving wood because the strong air assist will make the engraving pictures be dark.If you want to learn more about our laser cutter, you can also watch our videos:

https://www.thunderlaserthai.com/video/what-laser-cutter-can-create.html

If you have any question, just feel free to contact with us.
